High-voltage, high-current operational amplifier with 8A output current and 10A output current per channel. Features a 900kHz gain bandwidth product, 9V/µs slew rate, and 110dB voltage gain. Operates from ±4V to ±30V dual supply or 8V to 60V single supply, with excellent output swing. Packaged in a TO-220 case, this lead-free, RoHS compliant component offers 80dB CMRR and 92.04dB PSRR.
PackageTO-220
Current35mA
Quick Jump:
Technical Specifications
Texas Instruments OPA549T technical specifications.
General
Amplifier Type
POWER
Bandwidth
900kHz
Package/Case
TO-220
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
900kHz
Input Bias Current
500nA
Input Offset Voltage (Vos)
1mV
Lead Free
Lead Free
Max Dual Supply Voltage
30V
Min Dual Supply Voltage
4V
Max I/O Voltage
5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
8V
Nominal Gain Bandwidth Product
900kHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
26mA
Operating Supply Voltage
30V
Output Current
8A
Output Current per Channel
10A
Package Quantity
25
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
92.04dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
9V/µs
Supply Current
35mA
Unity Gain Bandwidth Product
900kHz
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA549T Datasheet
Download the complete datasheet for Texas Instruments OPA549T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

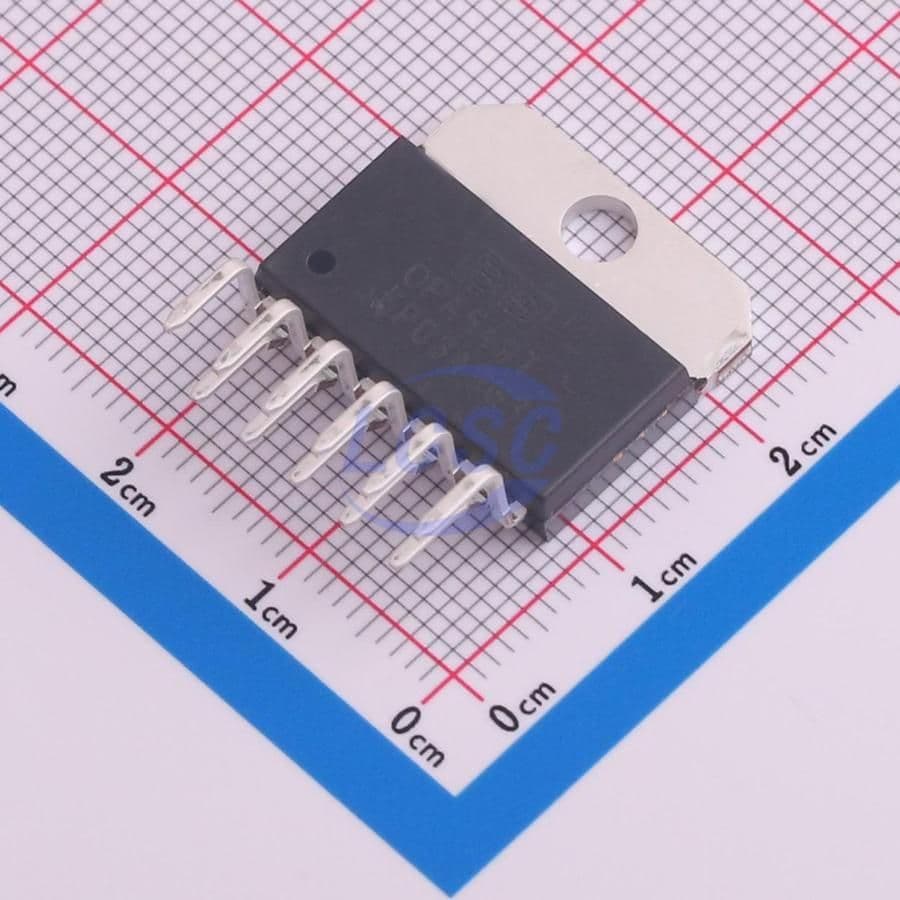

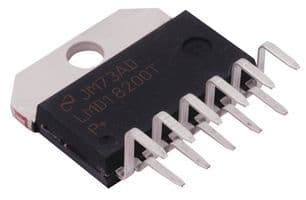

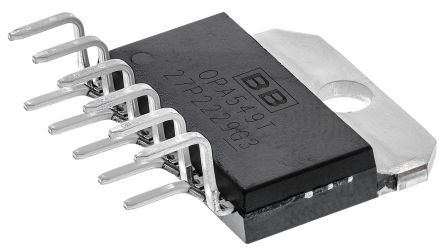

Product Images
