High-voltage, high-current operational amplifier featuring a 900kHz bandwidth and 8A output current. This single-channel power amplifier offers excellent output swing with a voltage gain of 110dB and a slew rate of 9V/µs. Operates with dual supply voltages from ±4V to ±30V or single supply from 8V to 60V. Packaged in a TO-220 case, this lead-free component is RoHS compliant and suitable for operation between -40°C and 85°C.
PackageTO-220
Current35mA
Quick Jump:
Technical Specifications
Texas Instruments OPA549TG3 technical specifications.
General
Amplifier Type
POWER
Bandwidth
900kHz
Package/Case
TO-220
Common Mode Rejection Ratio
80dB
Dual Supply Voltage
9V
Gain Bandwidth Product
900kHz
Height
4.5mm
Input Bias Current
500nA
Input Offset Voltage (Vos)
1mV
Lead Free
Lead Free
Length
20.02mm
Max Dual Supply Voltage
30V
Min Dual Supply Voltage
4V
Max I/O Voltage
5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
8V
Nominal Gain Bandwidth Product
900kHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Operating Supply Current
26mA
Operating Supply Voltage
30V
Output Current
8A
Output Current per Channel
10A
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
9V/µs
Supply Current
35mA
Voltage Gain
110dB
Width
10.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA549TG3 Datasheet
Download the complete datasheet for Texas Instruments OPA549TG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

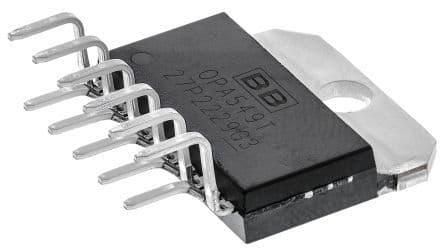

Product Images
