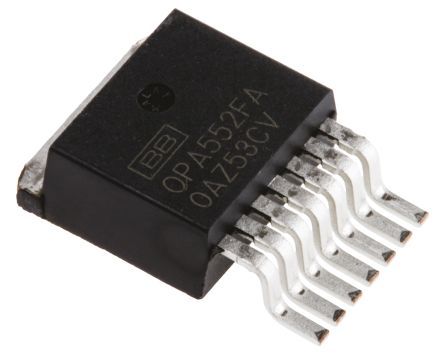

High-current, high-voltage operational amplifier featuring a 12MHz bandwidth and 200mA output current. This general-purpose amplifier offers a 30V maximum dual supply voltage, 24V/µs slew rate, and 126dB voltage gain. Designed for surface mounting in a TO-263-8 package, it operates across a wide temperature range of -40°C to 125°C. Key specifications include 92dB CMRR and 100dB PSRR, with low input bias current of 100pA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments OPA552FA/500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments OPA552FA/500 technical specifications.
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 12MHz |
| Package/Case | TO-263-8 |
| Common Mode Rejection Ratio | 92dB |
| Gain Bandwidth Product | 12MHz |
| Height | 4.44mm |
| Input Bias Current | 100pA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 10.1mm |
| Max Dual Supply Voltage | 30V |
| Min Dual Supply Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 7mA |
| Operating Supply Voltage | 30V |
| Output Current | 200mA |
| Output Current per Channel | 200mA |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 100dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 24V/µs |
| Supply Current | 8.5mA |
| Unity Gain Bandwidth Product | 12MHz |
| Voltage Gain | 126dB |
| Width | 8.89mm |
| RoHS | Compliant |
