High-performance, single-channel power operational amplifier featuring a 1.5A output current and a 24V maximum supply voltage. This general-purpose op-amp offers a 17MHz gain bandwidth product and a 40V/µs slew rate. Designed for a wide operating temperature range of -40°C to 85°C, it boasts a 108dB voltage gain and 100dB PSRR. The component is housed in a 20-SO PowerPAD package and is RoHS compliant.
PackageSOP
Current50mA
Quick Jump:
Technical Specifications
Texas Instruments OPA564AIDWPR technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
17MHz
Input Bias Current
100pA
Input Offset Voltage (Vos)
20mV
Lead Free
Lead Free
Max Dual Supply Voltage
12V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
20mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
24V
Min Supply Voltage
7V
Nominal Gain Bandwidth Product
17MHz
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
39mA
Operating Supply Voltage
12V
Output Current
1.5A
Output Current per Channel
1.5A
Package Quantity
2000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
100dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
40V/µs
Supply Current
50mA
Unity Gain Bandwidth Product
17MHz
Voltage Gain
108dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA564AIDWPR Datasheet
Download the complete datasheet for Texas Instruments OPA564AIDWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

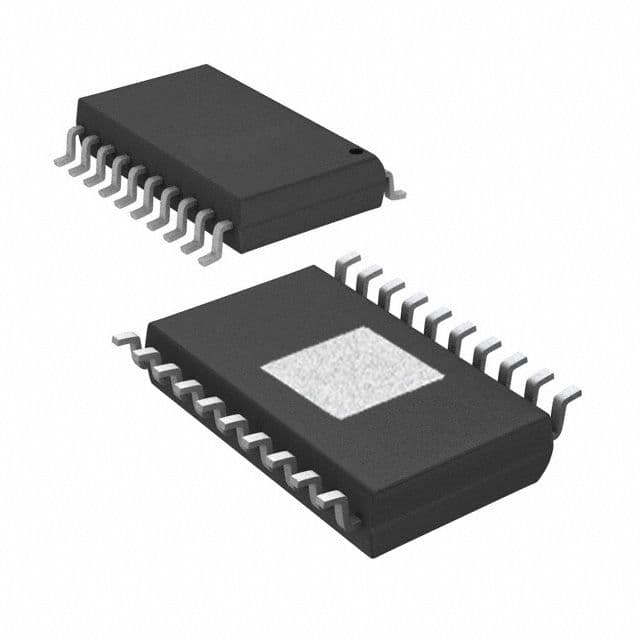

Product Images
