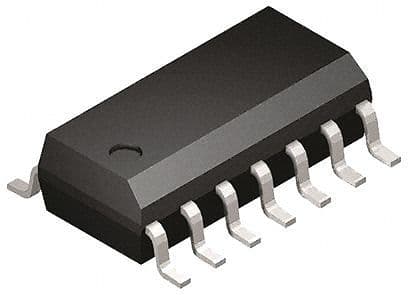

Sample & Hold Amplifier with 710MHz -3dB Bandwidth and Gain Bandwidth Product. Features a 2500V/µs slew rate and 4.6nV/sqrt Hz input voltage noise density. Operates with dual supply voltages from 4V to 6.2V, with a typical supply current of 13mA. Housed in a 14-SOIC package, this component offers a 50 Ohm input resistance and a maximum output current of 20mA per channel. Suitable for operation across a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments OPA615ID datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| -3db Bandwidth | 710MHz |
| Package/Case | D |
| Dual Supply Voltage | 5V |
| Gain Bandwidth Product | 710MHz |
| Height | 1.58mm |
| Input Bias Current | 3uA |
| Input Offset Voltage (Vos) | 40mV |
| Input Resistance | 50R |
| Input Voltage Noise Density | 4.6nV/sqrt Hz |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Dual Supply Voltage | 6.2V |
| Min Dual Supply Voltage | 4V |
| Max Frequency | 30MHz |
| Max I/O Voltage | 40mV |
| Max Input Voltage | 3.4V |
| Min Input Voltage | -3.4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5mA |
| Max Supply Voltage | 6.2V |
| Min Supply Voltage | 4V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 13mA |
| Output Current | 3mA |
| Output Current per Channel | 20mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 2500V/µs |
| Supply Current | 13mA |
| Supply Type | Dual |
| Weight | 0.004564oz |
| Width | 3.91mm |
| RoHS | Compliant |
