High-speed operational amplifier featuring a 500MHz -3dB bandwidth and 290V/µs slew rate. This single-channel amplifier offers a 230MHz gain bandwidth product and 70mA output current per channel. Operates with dual supply voltages from ±5V to ±6V, with a maximum supply voltage of 12V. Boasts 80dB CMRR and 72dB PSRR, with low input bias current of 20pA. Packaged in an 8-pin SOIC (D) case, this RoHS compliant component is suitable for demanding applications.
PackageD
Current16mA
Quick Jump:
Technical Specifications
Texas Instruments OPA656U technical specifications.
General
-3db Bandwidth
500MHz
Bandwidth
500MHz
Package/Case
D
Common Mode Rejection Ratio
80dB
Dual Supply Voltage
5V
Gain Bandwidth Product
230MHz
Height
1.58mm
Input Bias Current
20pA
Input Offset Voltage (Vos)
1.8mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
6V
Max I/O Voltage
600uV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
10V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
14mA
Operating Supply Voltage
12V
Output Current per Channel
70mA
Package Quantity
75
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
72dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
16ns
Slew Rate
290V/µs
Supply Current
16mA
Technology
BIFET
Unity Gain Bandwidth Product
230MHz
Voltage Gain
65dB
Weight
0.002677oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA656U Datasheet
Download the complete datasheet for Texas Instruments OPA656U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

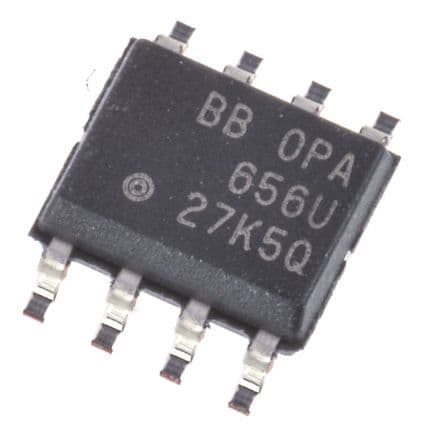

Product Images
