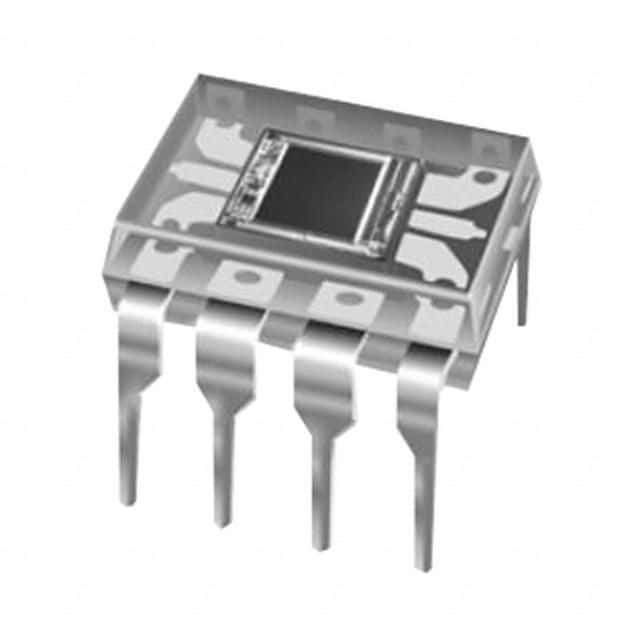

Monolithic photodiode and single-supply transimpedance amplifier with a 14kHz bandwidth. Features a responsivity of 0.45A/W at 650nm wavelength. Operates from a 2.7V to 36V supply with a typical 120uA operating current. Packaged in a PDIP for through-hole mounting, with dimensions of 9.53mm length, 6.52mm width, and 3.24mm height. This RoHS compliant component has a fall time of 28000ns and an operating temperature range of 0°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments OPT101P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments OPT101P technical specifications.
| Bandwidth | 14kHz |
| Package/Case | PDIP |
| Fall Time | 28000ns |
| Height | 3.24mm |
| Lead Free | Lead Free |
| Length | 9.53mm |
| Max Frequency | 14kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Operating Supply Current | 120uA |
| Output Type | Voltage |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Responsivity | 0.45A/W |
| RoHS Compliant | Yes |
| Wavelength | 650nm |
| Width | 6.52mm |
| RoHS | Compliant |
