Texas Instruments
PCA9545ADGVR
9545 SERIES, 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO20, GREEN, PLASTIC, TVSOP-20
PackageTFSOP
Power400mW
Quick Jump:
Technical Specifications
Texas Instruments PCA9545ADGVR technical specifications.
General
Bandwidth
400kHz
Package/Case
TFSOP
Lead Free
Lead Free
Logic Function
Multiplexer
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Number of Circuits
4
Number of Inputs
4
Number of Outputs
1
Number of Switches
1
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
400mW
Propagation Delay
1ns
Radiation Hardening
No
RoHS Compliant
Yes
Throw Configuration
4PST
Weight
0.002123oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCA9545ADGVR Datasheet
Download the complete datasheet for Texas Instruments PCA9545ADGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

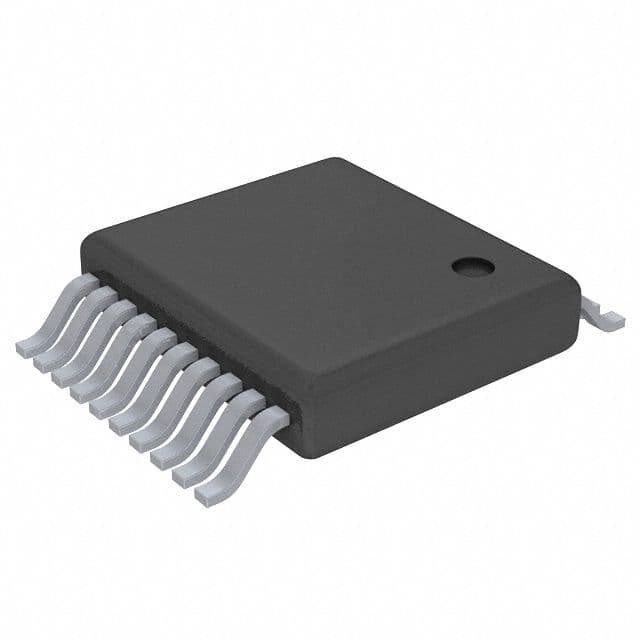

Product Images
