Texas Instruments
PCA9554ADB
Remote 8-Bit I<sup>2</sup>C and SMBus I/O Expander with Interrupt Output and Configuration Registers 16-SSOP -40 to 85
Frequency400kHz
PackageSSOP
Quick Jump:
Technical Specifications
Texas Instruments PCA9554ADB technical specifications.
General
| Package/Case | SSOP |
| Frequency | 400kHz |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of I/Os | 8 |
| Number of Outputs | 8 |
| Operating Supply Current | 104uA |
| Operating Supply Voltage | 5.5V |
| Output Current | -10mA |
| Package Quantity | 80 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Thickness | 1.95mm |
| Weight | 0.004536oz |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments PCA9554ADB Datasheet
Download the complete datasheet for Texas Instruments PCA9554ADB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

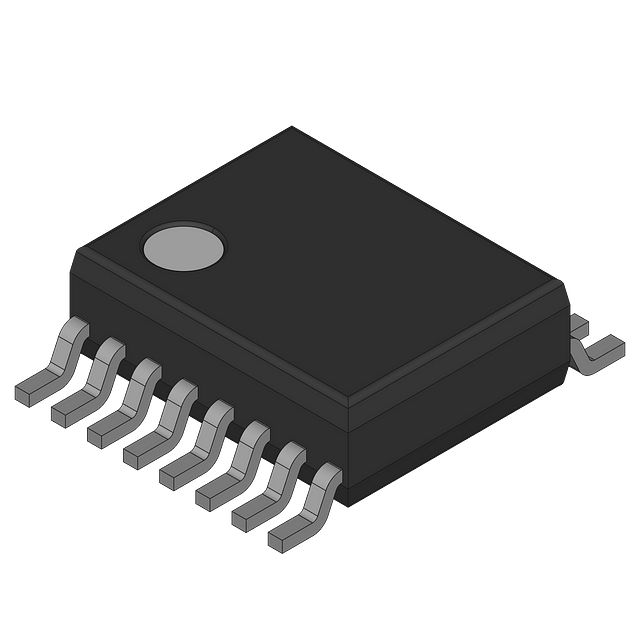

Product Images
