The PCF8574DGVRG4 is an 8-channel I/O expander from Texas Instruments, operating within a temperature range of -40°C to 85°C. It is packaged in a TFSOP package and is compliant with RoHS regulations. This device is designed to expand the number of I/Os in a system, with a maximum operating supply voltage of 6V. It features a frequency of up to 100kHz and is available in quantities of 2000 per reel.
Frequency100kHz
PackageTFSOP
Quick Jump:
Technical Specifications
Texas Instruments PCF8574DGVRG4 technical specifications.
General
| Package/Case | TFSOP |
| Frequency | 100kHz |
| Lead Free | Lead Free |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of I/Os | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 6V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Weight | 0.002123oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments PCF8574DGVRG4 Datasheet
Download the complete datasheet for Texas Instruments PCF8574DGVRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

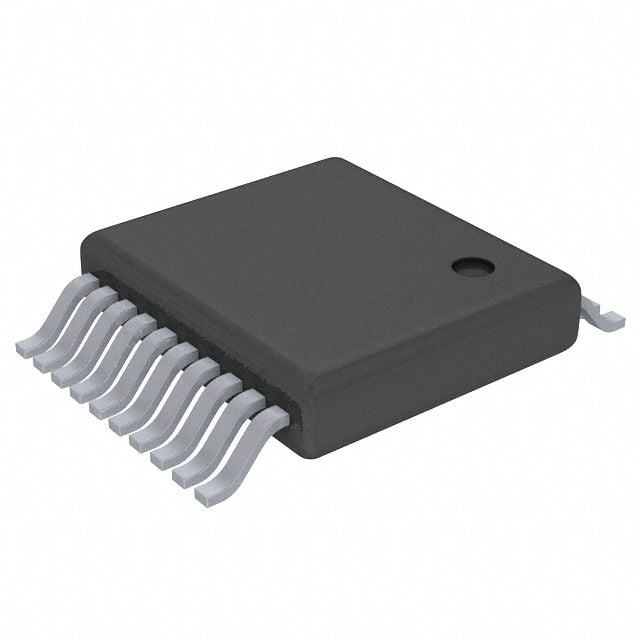

Product Images
