32-bit, 66MHz PCI bridge controller, surface mountable in a 208-pin LQFP package. Operates with a 3V to 5.25V supply voltage, featuring a 5V operating voltage. This RoHS compliant integrated circuit offers a maximum operating temperature of 85°C and a minimum of -40°C.
Frequency66MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments PCI2050BIPDV technical specifications.
General
Package/Case
LQFP
Data Bus Width
32b
Frequency
66MHz
Interface
PCI
Lead Free
Lead Free
Max Frequency
66MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Voltage
5V
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Weight
0.089744oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCI2050BIPDV Datasheet
Download the complete datasheet for Texas Instruments PCI2050BIPDV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

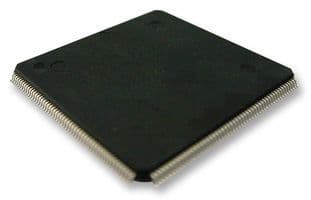

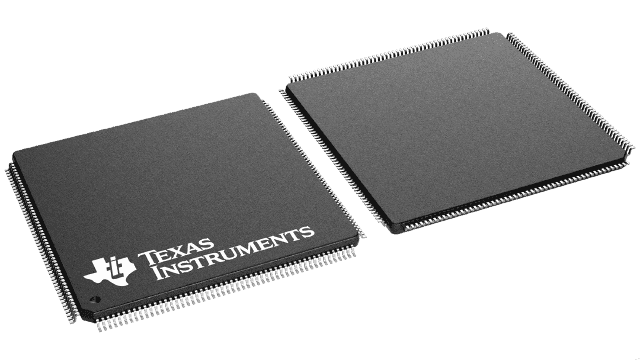

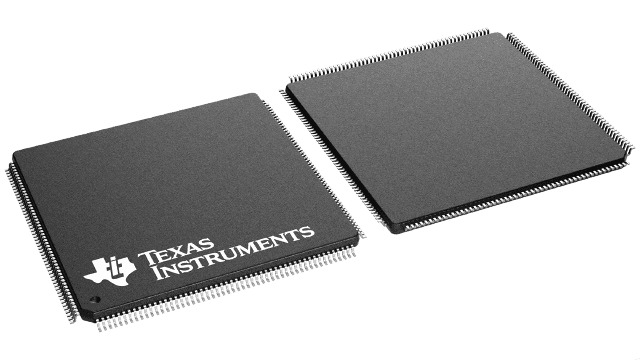

Product Images
