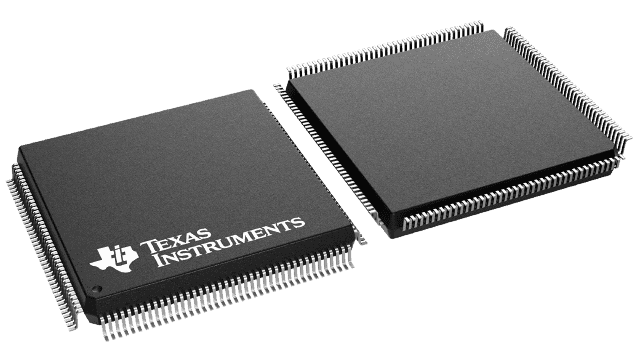

32-bit PCI bridge controller, operating at 33MHz, designed for surface mount installation. Features a 176-pin LQFP package with dimensions of 24mm length, 24mm width, and 1.6mm height. Supports a data bus width of 32 bits, with an operating supply voltage of 5V, ranging from 3V to 5.25V. RoHS compliant, this integrated circuit operates between 0°C and 70°C.
Sign in to ask questions about the Texas Instruments PCI2250PGF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments PCI2250PGF technical specifications.
| Package/Case | LQFP |
| Data Bus Width | 32b |
| Frequency | 33MHz |
| Height | 1.6mm |
| Interface | PCI |
| Lead Free | Contains Lead |
| Length | 24mm |
| Max Frequency | 33MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 20mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 32 |
| Operating Supply Voltage | 5V |
| Package Quantity | 40 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 1.4mm |
| Weight | 0.066886oz |
| Width | 24mm |
| RoHS | Compliant |
