8-Channel Audio Digital-to-Analog Converter (DAC) offering 24-bit resolution and 105dB Signal-to-Noise Ratio (SNR). Features a 192 kS/s conversion rate and a 5-wire serial interface. Operates with a 5V supply voltage, consuming 224mW of power. Packaged in a 48-LQFP for surface mounting, with an operating temperature range of -25°C to 85°C.
PackageLQFP
Current36mA
MountingSurface Mount
Power224mW
Quick Jump:
Technical Specifications
Texas Instruments PCM1609APT technical specifications.
General
Package/Case
LQFP
Conversion Rate
192KS/s
Interface
Serial, 5-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
313mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
24
Number of Channels
8
Number of Converters
8
Operating Supply Voltage
5V
Output Type
Voltage
Package Quantity
1
Packaging
Tray
Power Consumption
224mW
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
192000S/s
Series
PCM1609A
Signal to Noise Ratio (SNR)
105dB
Supply Current
36mA
Supply Type
Analog, Digital
Weight
0.006349oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCM1609APT Datasheet
Download the complete datasheet for Texas Instruments PCM1609APT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

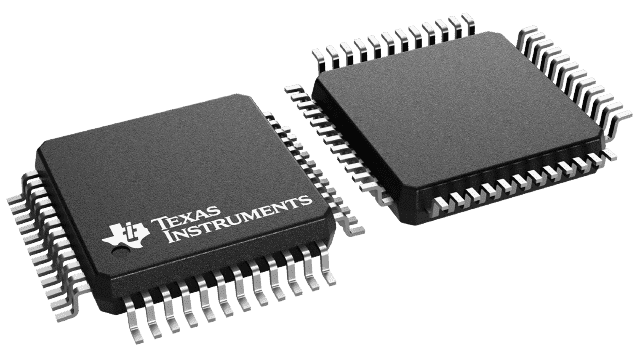

Product Images
