8-channel, 24-bit digital-to-analog converter (DAC) IC featuring 113dB signal-to-noise ratio (SNR) and differential voltage outputs. Supports a sampling rate of 192 kS/s via a 6-wire serial SPI interface. Operates from a 4.5V to 5.5V supply, with a typical 5V operating voltage. Packaged in a 48-pin HTSSOP for surface mounting, this lead-free and RoHS compliant component is rated for -40°C to 85°C operation.
PackageHTSSOP
MountingSurface Mount
Power558mW
Quick Jump:
Technical Specifications
Texas Instruments PCM1690DCAR technical specifications.
General
Package/Case
HTSSOP
Conversion Rate
192KS/s
Interface
Serial, 6-WIRE, SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
847mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Analog Inputs
0
Number of Analog Outputs
8
Number of Bits
24
Number of Channels
8
Number of Converters
8
Number of DAC Channels
8
Operating Supply Voltage
5V
Output Type
Voltage
Package Quantity
2000
Packaging
Tape and Reel
Power Consumption
558mW
Radiation Hardening
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
192000S/s
Series
Automotive, AEC-Q100
Signal to Noise Ratio (SNR)
113dB
Supply Type
Analog, Digital
Weight
0.007422oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCM1690DCAR Datasheet
Download the complete datasheet for Texas Instruments PCM1690DCAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

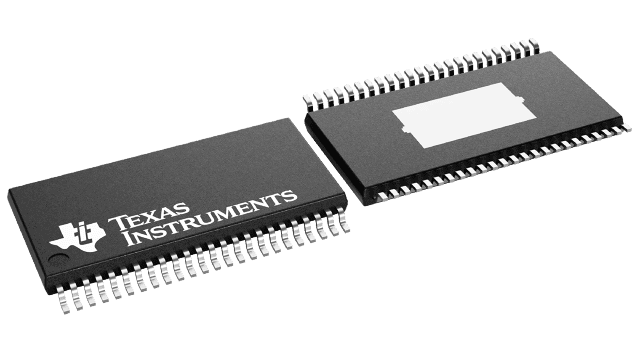

Product Images
