8-channel audio Digital-to-Analog Converter (DAC) featuring 24-bit resolution and a 111dB Signal-to-Noise Ratio (SNR). This surface mount component operates with a 5V supply voltage, accepting analog and digital inputs. It supports a sampling rate of 192kS/s via a 6-wire serial or I2C interface. Packaged in HTSSOP, it functions across a -40°C to 85°C temperature range.
PackageHTSSOP
Current76mA
MountingSurface Mount
Power558mW
Quick Jump:
Technical Specifications
Texas Instruments PCM1691DCA technical specifications.
General
Package/Case
HTSSOP
Conversion Rate
192KS/s
Interface
Serial, 6-WIRE, I2C
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
8
Number of Converters
8
Number of DAC Channels
8
Operating Supply Voltage
5V
Output Type
Voltage
Package Quantity
40
Packaging
Rail/Tube
Power Consumption
558mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
192000S/s
Signal to Noise Ratio (SNR)
111dB
Supply Current
76mA
Supply Type
Analog, Digital
Weight
0.007422oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCM1691DCA Datasheet
Download the complete datasheet for Texas Instruments PCM1691DCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

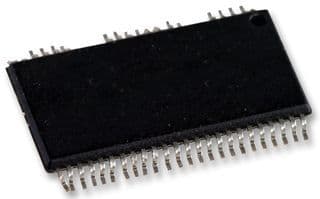

Product Images
