Low-power stereo CODEC featuring 20-bit resolution and 90dB signal-to-noise ratio. This integrated circuit offers 2 analog inputs and 2 analog outputs, with 2 ADC and 2 DAC channels. It supports serial interfaces (3-wire and 4-wire) and operates from a 2.4V to 3.6V supply, with a typical 3V operating voltage. Packaged in a 24-SSOP, this RoHS compliant component is suitable for consumer applications.
PackageSSOP
Power54mW
Quick Jump:
Technical Specifications
Texas Instruments PCM3002EG/2K technical specifications.
General
Package/Case
SSOP
Interface
Serial, 3-WIRE, 4-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.4V
Number of A/D Converters
1
Number of ADC Channels
2
Number of Analog Inputs
2
Number of Analog Outputs
2
Number of D/A Converters
1
Number of DAC Channels
2
Operating Supply Voltage
3V
Package Quantity
2000
Packaging
Tape and Reel
Power Consumption
54mW
Radiation Hardening
No
Resolution
20b
RoHS Compliant
Yes
Sampling Rate
48KS/s
Series
PCM3002
Signal to Noise Ratio (SNR)
90dB
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCM3002EG/2K Datasheet
Download the complete datasheet for Texas Instruments PCM3002EG/2K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

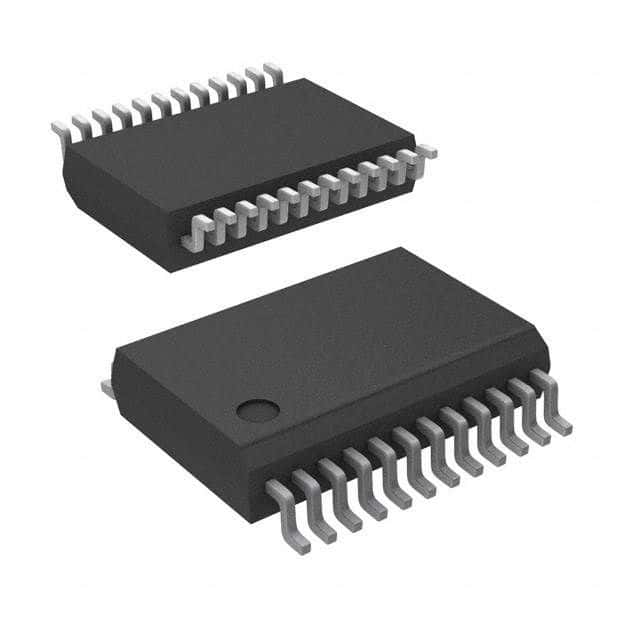

Product Images
