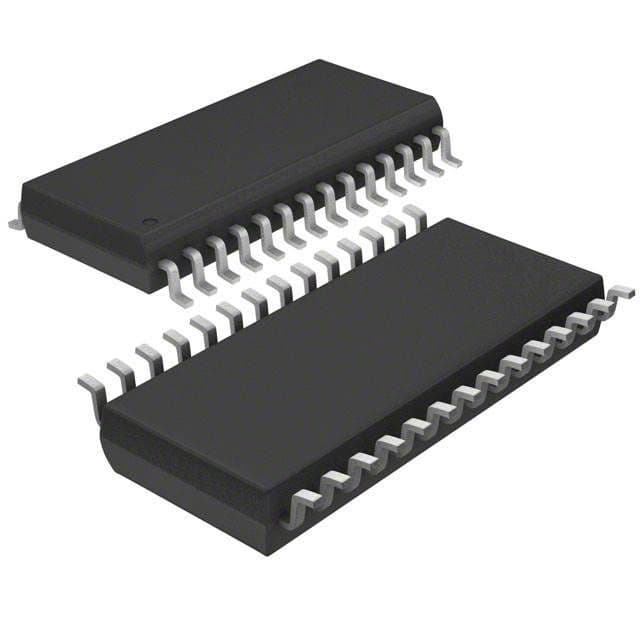

24-bit stereo audio codec IC featuring 2 analog inputs and 2 analog outputs. Supports I2C, SPI, and 2/3-wire serial interfaces with a sampling rate of up to 192 kS/s. Offers a 99dB signal-to-noise ratio and operates from a 4.5V to 5.5V supply voltage. Packaged in a 28-pin TSSOP, this lead-free and RoHS-compliant component is suitable for general-purpose audio applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments PCM3060PWG4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Interface | I2C, SPI, Serial, 2-Wire, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 2 |
| Number of Analog Inputs | 2 |
| Number of Analog Outputs | 2 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 160mW |
| Radiation Hardening | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 192KS/s |
| Signal to Noise Ratio (SNR) | 99dB |
| Type | General Purpose |
| Weight | 0.004145oz |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments PCM3060PWG4 to view detailed technical specifications.
