32-bit stereo digital-to-analog converter (DAC) featuring a 2V RMS DirectPath™ output and 112dB Signal-to-Noise Ratio (SNR). Supports PCM interface and fixed audio processing, with a sampling rate of 384KS/s. Operates with analog and digital supply types, from 3V to 3.6V, and a typical operating current of 15mA. Interface options include I2C, SPI, and Serial. Packaged in a 28-TSSOP surface-mount case, measuring 9.8mm x 4.5mm x 1.05mm, with an operating temperature range of -25°C to 85°C.
Frequency3.072GHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments PCM5122PW technical specifications.
General
Package/Case
TSSOP
Conversion Rate
384KS/s
Height
1.05mm
Interface
I2C, SPI, Serial
Lead Free
Lead Free
Length
9.8mm
Max Frequency
3.072GHz
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
155mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Analog Inputs
0
Number of Analog Outputs
2
Number of Bits
32
Number of Channels
2
Number of Converters
2
Number of DAC Channels
2
Operating Supply Current
15mA
Operating Supply Voltage
3.3V
Output Polarity
Bipolar
Output Type
Voltage
Output Voltage
2.1V
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
32b
RoHS Compliant
Yes
Sampling Rate
384KS/s
Series
DirectPath™
Signal to Noise Ratio (SNR)
112dB
Supply Type
Analog, Digital
Weight
0.004233oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCM5122PW Datasheet
Download the complete datasheet for Texas Instruments PCM5122PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

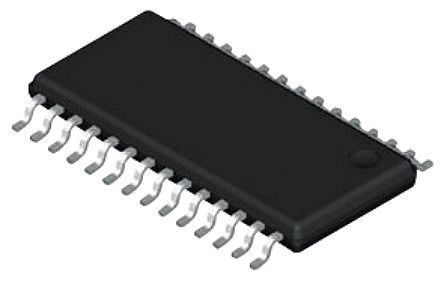

Product Images
