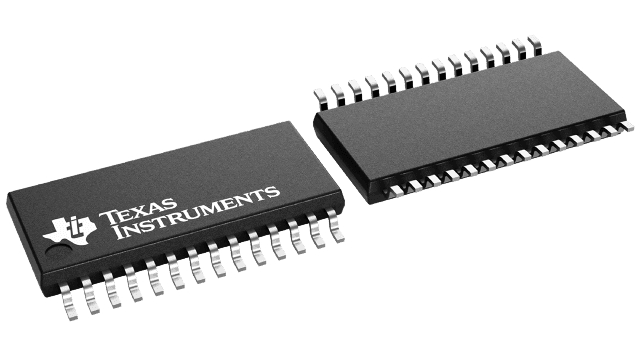

High-fidelity 32-bit stereo digital-to-analog converter (DAC) featuring a 106dB signal-to-noise ratio and 384 kS/s sampling rate. This audio DAC supports PCM interface and includes a fully programmable miniDSP. Delivering 2V RMS output voltage, it operates from a 3V to 3.6V supply range and is housed in a lead-free, RoHS-compliant 28-TSSOP surface-mount package. Interfaces include I2C, SPI, and serial communication.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments PCM5141PWR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments PCM5141PWR technical specifications.
| Package/Case | TSSOP |
| Conversion Rate | 384KS/s |
| Interface | I2C, SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Analog Inputs | 0 |
| Number of Analog Outputs | 2 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Resolution | 32b |
| RoHS Compliant | Yes |
| Sampling Rate | 384000S/s |
| Series | DirectPath™ |
| Signal to Noise Ratio (SNR) | 106dB |
| Supply Type | Analog, Digital |
| RoHS | Compliant |
