16-Bit Monolithic Digital-to-Analog Converter (DAC) with a serial interface. Features a 666 kS/s conversion rate and a single DAC channel. Operates with a dual supply voltage ranging from 4.75V to 13.2V, with a nominal 5V dual supply. Housed in a through-hole PDIP package, this component offers bipolar output polarity and a 16-bit resolution.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments PCM56P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

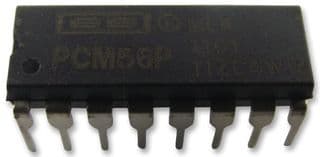

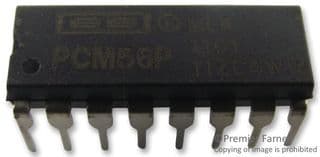

Texas Instruments PCM56P technical specifications.
| Package/Case | PDIP |
| Conversion Rate | 666KS/s |
| Dual Supply Voltage | 5V |
| Height | 4.57mm |
| Interface | Serial |
| Lead Free | Contains Lead |
| Length | 19.3mm |
| Max Dual Supply Voltage | 13.2V |
| Min Dual Supply Voltage | 4.75V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Bipolar |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Series | PCM56 |
| Supply Type | Dual |
| Weight | 0.037172oz |
| Width | 6.35mm |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments PCM56P to view detailed technical specifications.
