Single-channel instrumentation amplifier featuring a 1MHz -3dB bandwidth and 1MHz gain bandwidth product. Offers 80dB common mode rejection ratio, 50µV input offset voltage, and 2nA input bias current. Operates with dual supply voltages from ±4.5V to ±18V, or single supply from 9V to 36V. Packaged in a 16-pin PDIP, this RoHS compliant component has a slew rate of 0.7V/µs and a settling time of 140µs.
PackageN
Current6.5mA
Quick Jump:
Technical Specifications
Texas Instruments PGA204BP technical specifications.
General
-3db Bandwidth
1MHz
Bandwidth
1MHz
Package/Case
N
Common Mode Rejection Ratio
80dB
Dual Supply Voltage
15V
Gain Bandwidth Product
1MHz
Input Bias Current
2nA
Input Offset Voltage (Vos)
50uV
Input Resistance
10GR
Input Voltage Noise Density
13nV/sqrt Hz
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
9V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
3
Operating Supply Current
5.2mA
Output Current per Channel
23mA
Package Quantity
25
Packaging
Rail/Tube
Quiescent Current
5.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
140us
Slew Rate
0.7V/µs
Supply Current
6.5mA
Voltage Gain
60dB
Weight
0.037172oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PGA204BP Datasheet
Download the complete datasheet for Texas Instruments PGA204BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

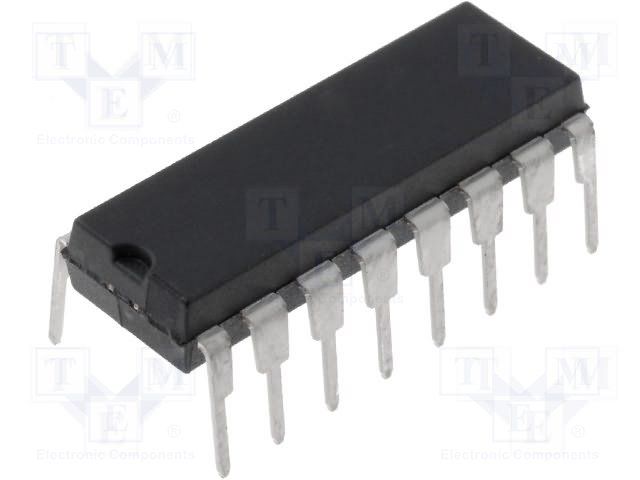

Product Images
