Texas Instruments
PT6655G
4A SWITCHING REGULATOR, 600kHz SWITCHING FREQ-MAX, PSMA14, ROHS COMPLIANT, PLASTIC, SIP-14
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments PT6655G technical specifications.
General
| Package/Case | SIP |
| Height | 0.42inch |
| Lead Free | Lead Free |
| Length | 2.36inch |
| Max Input Voltage | 28V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Power Dissipation | 60W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 4A |
| Output Voltage | 15V |
| Package Quantity | 12 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | PT6650 |
| Voltage - Output 1 | 15V |
| Width | 1.22inch |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments PT6655G Datasheet
Download the complete datasheet for Texas Instruments PT6655G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

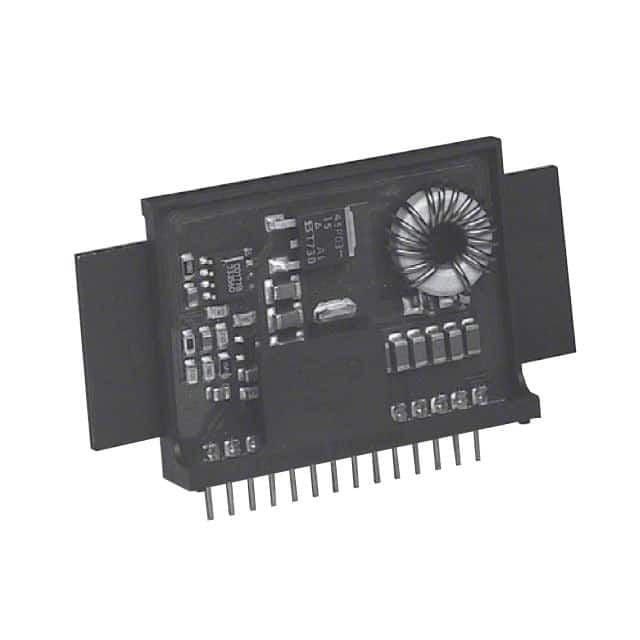

Product Images
