6A, 3.6V output DC/DC converter module with a 4.5V to 5.5V input range. Features 95% efficiency at 600kHz switching frequency and non-isolated operation. This board mount module offers adjustable output voltage from 800mV to 3.6V and includes UVLO protection. Designed for a wide operating temperature range of -40°C to 85°C, it is RoHS compliant and available in a 6-through-hole package.
Frequency600kHz
PackageModule
Quick Jump:
Technical Specifications
Texas Instruments PTH05050WAH technical specifications.
General
Package/Case
Module
Current - Output 1
6A
Depth
22.1mm
Efficiency
95%
Features
UVLO
Frequency
600kHz
Height
8.5mm
Isolation
Non-Isolated
Lead Free
Lead Free
Length
22.1mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Output Power
21.6W
Max Output Voltage
3.6V
Min Output Voltage
800mV
Max Power Dissipation
21.6W
Number of Outputs
1
Output Current
6A
Output Voltage
3.6V
Package Quantity
56
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PTH05050W
Voltage - Output 1
3.6V
Width
12.57mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PTH05050WAH Datasheet
Download the complete datasheet for Texas Instruments PTH05050WAH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

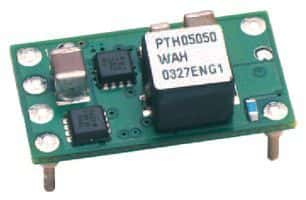

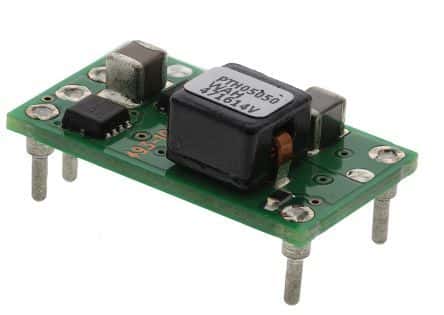

Product Images
