6-A, adjustable output DC/DC converter module with 4.5V to 14V input range. Features 95% efficiency and a maximum output power of 33W. Integrated protection includes UVLO, OCP, and OTP. Operates across a -40°C to 85°C temperature range. Surface mount package designed for board mounting.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Texas Instruments PTH08T230WAZT technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
6A
Depth
15.75mm
Efficiency
95%
Features
UVLO, OCP, OTP
Height
0.36inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
18.92mm
Max Input Voltage (DC)
14V
Min Input Voltage (DC)
4.5V
Max Input Voltage
14V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Output Power
33W
Max Output Voltage
5.5V
Min Output Voltage
690mV
Max Power Dissipation
33W
Number of Outputs
1
Output Current
6A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PTH08T230W
Voltage - Output 1
5.5V
Width
0.62inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PTH08T230WAZT Datasheet
Download the complete datasheet for Texas Instruments PTH08T230WAZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

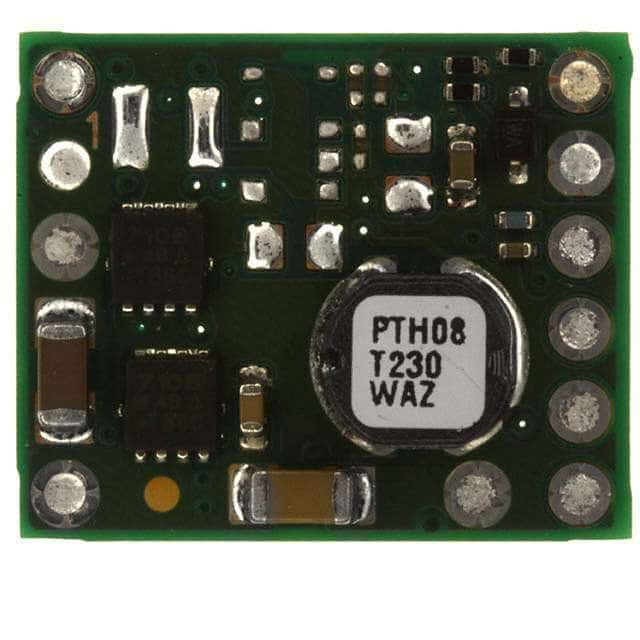

Product Images
