DC-DC Controller & Regulator module, non-isolated, featuring a single output with adjustable voltage from 0.69V to 5.5V and a maximum output current of 3A, delivering up to 16.5W. This component operates with an efficiency of 95% and accepts an input voltage range of 4.5V to 14V. Housed in a 10-pin DIP module package, it offers a wide operating temperature range of -40°C to 85°C and is RoHS compliant.
PackageModule
Quick Jump:
Technical Specifications
Texas Instruments PTH08T260WAD technical specifications.
General
Package/Case
Module
Current - Output 1
3A
Depth
15.75mm
Efficiency
95%
Flammability Rating
UL94 V-0
Height
0.34inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
18.92mm
Max Input Voltage (DC)
14V
Min Input Voltage (DC)
4.5V
Max Input Voltage
14V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Power
16.5W
Max Output Voltage
5.5V
Min Output Voltage
690mV
Max Power Dissipation
16.5W
Nominal Output Voltage
5.5V
Number of Outputs
1
Output Current
3A
Output Voltage
5.5V
Package Quantity
36
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PTH08T260W
Voltage - Output 1
5.5V
Weight
2.5g
Width
15.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PTH08T260WAD Datasheet
Download the complete datasheet for Texas Instruments PTH08T260WAD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

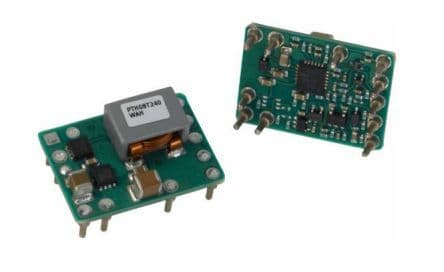

Product Images
