Board mount DC/DC converter module with 6A maximum output current and adjustable output voltage from 0.8V to 1.8V. Features 12V input, 88% efficiency, and a maximum output power of 10.8W. Operating temperature range is -40°C to 85°C. Includes UVLO and OCP protection features. Surface mount package with dimensions of 22.1mm (L) x 12.57mm (D) x 0.36inch (H).
PackageSMD/SMT
Quick Jump:
Technical Specifications
Texas Instruments PTH12050LAZ technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Output 1 | 6A |
| Depth | 12.57mm |
| Efficiency | 88% |
| Features | UVLO, OCP |
| Height | 0.36inch |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 22.1mm |
| Max Input Voltage (DC) | 13.2V |
| Min Input Voltage (DC) | 10.8V |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 10.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Output Power | 10.8W |
| Max Output Voltage | 1.8V |
| Min Output Voltage | 800mV |
| Max Power Dissipation | 11W |
| Number of Outputs | 1 |
| Output Current | 6A |
| Output Voltage | 1.8V |
| Package Quantity | 56 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PTH12050 |
| Voltage - Output 1 | 1.8V |
| Width | 0.5inch |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments PTH12050LAZ Datasheet
Download the complete datasheet for Texas Instruments PTH12050LAZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

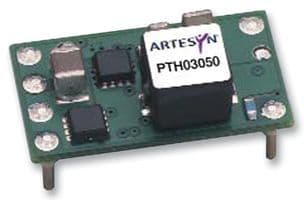

Product Images
