6-Amp, 1.2 to 5.5V adjustable output DC/DC converter module. Features non-isolated, board-mount design with 10.8V to 13.2V input voltage range. Delivers up to 33W output power with 93% efficiency. Operates across a -40°C to 85°C temperature range. Through-hole package with dimensions of 22.1mm (L) x 12.57mm (W) x 0.34inch (H).
PackageModule
Quick Jump:
Technical Specifications
Texas Instruments PTH12050WAH technical specifications.
General
Package/Case
Module
Current - Output 1
6A
Depth
12.57mm
Efficiency
93%
Height
0.34inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
22.1mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Output Power
33W
Max Output Voltage
5.5V
Min Output Voltage
1.2V
Max Power Dissipation
33W
Number of Outputs
1
Output Current
6A
Output Voltage
5.5V
Package Quantity
56
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PTH12050
Voltage - Output 1
5.5V
Width
12.57mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PTH12050WAH Datasheet
Download the complete datasheet for Texas Instruments PTH12050WAH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

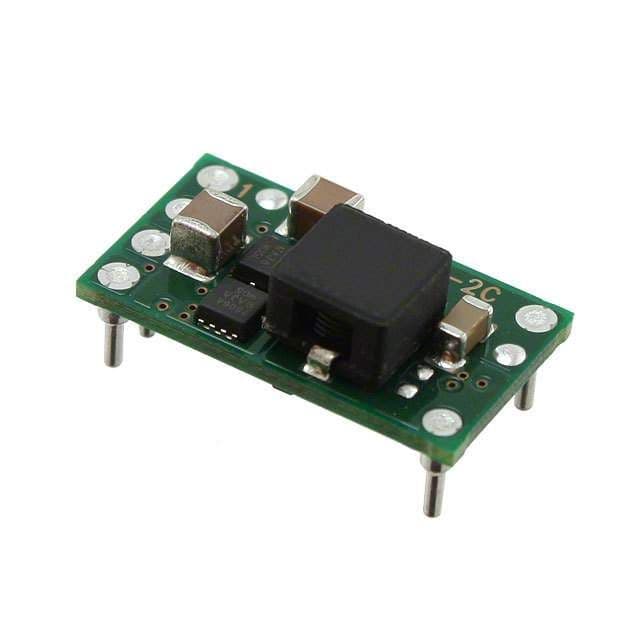

Product Images
