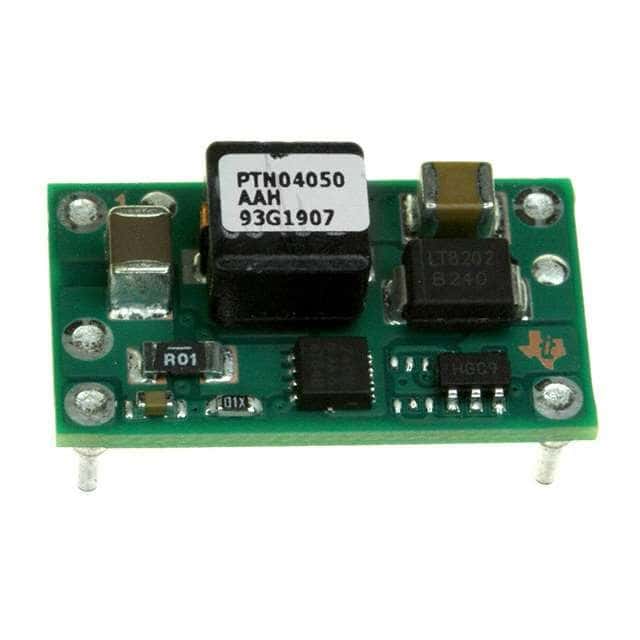

Positive-to-negative DC/DC converter module offering 6W output power. Features a wide adjustable output voltage range from -3.3V to -15V with a maximum output current of 1A. Operates with input voltages between 2.9V and 7V, achieving 80% efficiency. Includes Under Voltage Lockout (UVLO) protection. Packaged in a non-isolated module with dimensions of 18.92mm (L) x 12.7mm (W) x 12.57mm (D), suitable for through-hole mounting. Rated for operation from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments PTN04050AAH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Current - Output 1 | 1A |
| Depth | 12.57mm |
| Efficiency | 80% |
| Features | UVLO |
| Height | 0.34inch |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 18.92mm |
| Max Input Voltage | 7V |
| Min Input Voltage | 2.9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | -3.3V |
| Min Output Voltage | -15V |
| Max Power Dissipation | 6W |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Power | 6W |
| Output Voltage | -3.3V |
| Package Quantity | 56 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PTN04050A |
| Voltage - Output 1 | -3.3V |
| Width | 0.5inch |
| RoHS | Compliant |
