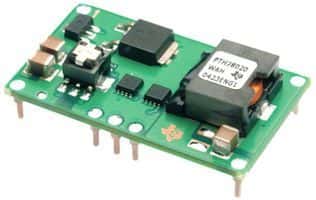

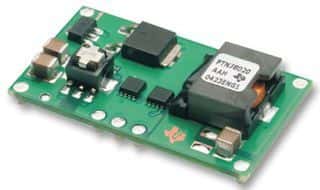

Non-isolated DC-DC controller and regulator module with 1 output, delivering up to 6A and 90W. Features adjustable output voltage from 2.5V to 12.6V, with a nominal output of 12.6V. Operates with input voltages between 7V and 36V DC, achieving up to 94% efficiency. Includes UVLO, OCP, and OTP protection features. Packaged in a 7-pin SMD module tray, with dimensions of 37.97mm (L) x 22.1mm (D) x 0.38inch (H).
Sign in to ask questions about the Texas Instruments PTN78020WAZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments PTN78020WAZ technical specifications.
| Package/Case | SMD/SMT |
| Current - Output 1 | 6A |
| Depth | 22.1mm |
| Efficiency | 94% |
| Features | UVLO, OCP, OTP |
| Height | 0.38inch |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 37.97mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 7V |
| Max Input Voltage | 36V |
| Min Input Voltage | 7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Output Power | 90W |
| Max Output Voltage | 12.6V |
| Min Output Voltage | 2.5V |
| Max Power Dissipation | 76W |
| Nominal Output Voltage | 12.6V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 20V |
| Output Current | 6A |
| Output Power | 90W |
| Output Voltage | 12.6V |
| Package Quantity | 20 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PTN78020W |
| Voltage - Output 1 | 12.6V |
| Width | 0.87inch |
| RoHS | Compliant |
