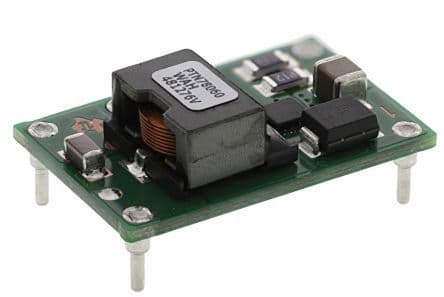

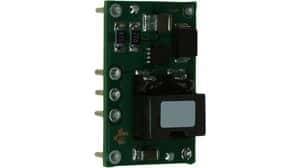

Adjustable switching regulator module, 3A output current, 94% efficiency, and 550kHz switching frequency. Features a wide input voltage range of 7V to 36V DC and an adjustable output voltage from 2.5V to 12.6V. This non-isolated, through-hole module offers UVLO protection and operates across a temperature range of -40°C to 85°C. Maximum output power is 45W.
Sign in to ask questions about the Texas Instruments PTN78060WAH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments PTN78060WAH technical specifications.
| Current - Output 1 | 3A |
| Depth | 15.75mm |
| Efficiency | 94% |
| Features | UVLO |
| Frequency | 550kHz |
| Height | 0.35inch |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 25.27mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 7V |
| Max Input Voltage | 36V |
| Min Input Voltage | 7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Power | 37.8W |
| Max Output Voltage | 12.6V |
| Min Output Voltage | 2.5V |
| Max Power Dissipation | 38W |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 7V |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Power | 45W |
| Output Voltage | 12.6V |
| Package Quantity | 36 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PTN78060W |
| Termination | Through Hole |
| Voltage - Output 1 | 12.6V |
| Width | 0.62inch |
| RoHS | Compliant |
