RC4558P

Datasheet

2-Ch Op Amp, 3MHz BW, 15V, 8-PDIP, Bipolar

Texas Instruments

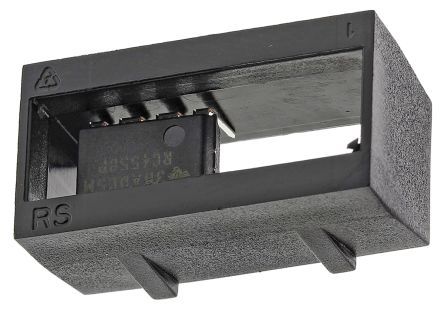

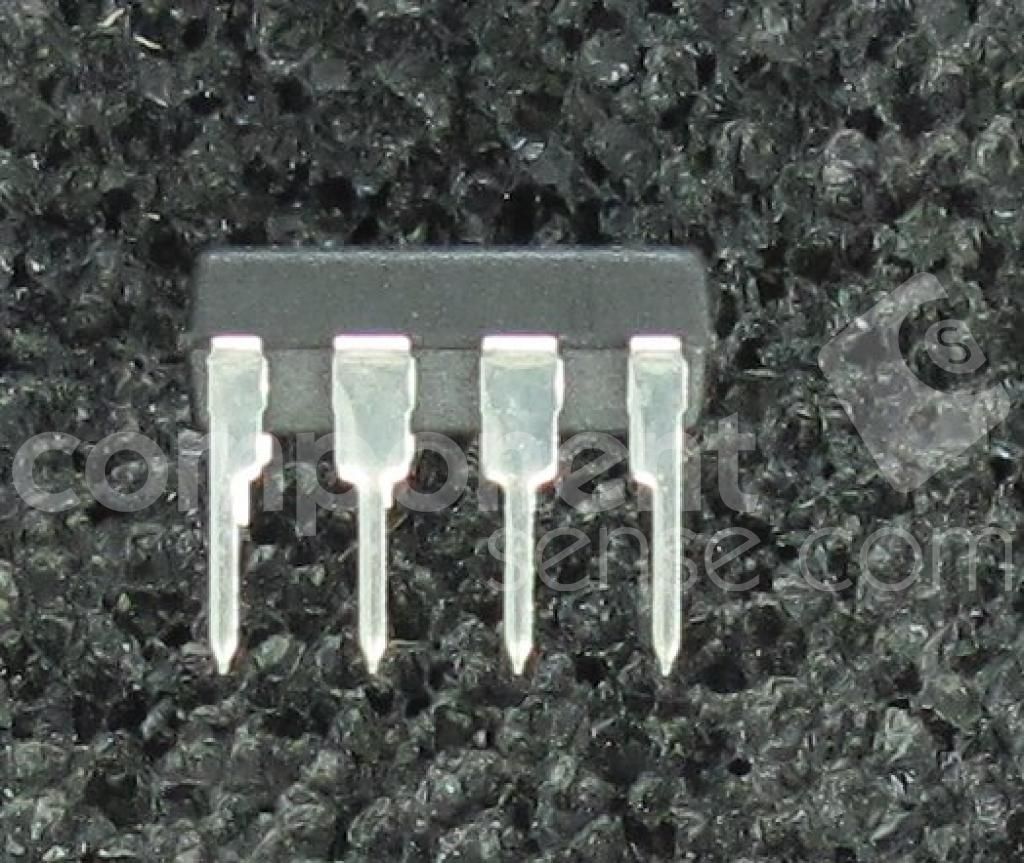

RC4558P

Name: RC4558P Texas Instruments
Brand: Texas Instruments
SKU: RC4558P
Price: 0.32 USD
Availability: InStock

2-Ch Op Amp, 3MHz BW, 15V, 8-PDIP, Bipolar

Dual-channel, general-purpose operational amplifier with a 3MHz bandwidth and 1.7V/µs slew rate. Features a 14V output swing, 70dB common mode rejection ratio, and operates with dual supply voltages from 5V to 15V. This bipolar IC offers a 3MHz gain bandwidth product and a 2.5mA operating supply current, housed in an 8-PDIP package. Suitable for applications requiring a nominal gain bandwidth product of 3MHz and a voltage gain up to 109.54dB.

PackageP

Current5.6mA

Quick Jump:

Pricing & Availability

Distributor	Stock	Min Qty	1+	5+	10+	25+	Package Type	Action
TME	1,211 In Stock	1	0.32	0.258	0.23	0.199	pcs	View
Quest	61 In Stock	37	-	-	-	-	-	View

Chat with Datasheet

Technical Specifications

Texas Instruments RC4558P technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	3MHz
Package/Case	P
Common Mode Rejection Ratio	70dB
Dual Supply Voltage	9V
Gain Bandwidth Product	3MHz
Height	4.57mm
Input Bias Current	500nA
Input Offset Voltage (Vos)	6mV
Lead Free	Lead Free
Length	9.81mm
Max Dual Supply Voltage	15V
Min Dual Supply Voltage	5V
Max I/O Voltage	6mV
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Current	5.6mA
Nominal Gain Bandwidth Product	3MHz
Number of Amplifiers	2
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Operating Supply Current	2.5mA
Operating Supply Voltage	15V
Package Quantity	50
Packaging	Rail/Tube
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Slew Rate	1.7V/µs
Supply Current	5.6mA
Technology	BIPOLAR
Thickness	3.9mm
Unity Gain Bandwidth Product	3MHz
Voltage Gain	109.54dB
Width	6.35mm
