2.048V fixed series voltage reference IC, featuring a low 50µA maximum supply current and 25mA maximum output current. Operates from a 2.098V to 5.5V input voltage range with a ±0.2% initial tolerance and 50-ppm/°C temperature coefficient. Housed in a compact 3-pin SOT-23 surface-mount package, this component is RoHS compliant and suitable for operation between -40°C and 125°C.
PackageSOT-23
Quick Jump:
Technical Specifications
Texas Instruments REF3020AIDBZT technical specifications.
General
Package/Case
SOT-23
Height
1mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
5.5V
Min Input Voltage
2.098V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
25mA
Max Output Voltage
2.048V
Min Output Voltage
2.044V
Max Supply Current
50uA
Number of Channels
1
Operating Supply Current
42uA
Output Current
25mA
Output Voltage
2.048V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
50uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series, Fixed
Reference Voltage
2.048V
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
0.2%
Weight
0.050717oz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF3020AIDBZT Datasheet
Download the complete datasheet for Texas Instruments REF3020AIDBZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

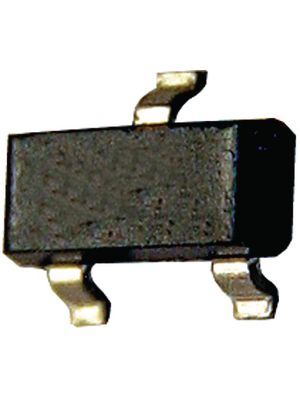

Product Images
