2.5V series voltage reference IC in a 3-pin SOT-23 package. Features a maximum temperature coefficient of 20-ppm/°C, operating from a 2.55V to 5.5V input voltage. Delivers a stable 2.5V output with a maximum output current of 10mA. Quiescent current is 100µA, with an operating supply current of 135µA. Operates across a temperature range of -40°C to 125°C.
PackageSOT-23
Quick Jump:
Technical Specifications
Texas Instruments REF3125AIDBZT technical specifications.
General
Package/Case
SOT-23
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.55V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Max Supply Current
100uA
Operating Supply Current
135uA
Output Current
10mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
100uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
2.5V
RoHS Compliant
Yes
Thickness
1mm
Tolerance
0.2%
Weight
0.050717oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF3125AIDBZT Datasheet
Download the complete datasheet for Texas Instruments REF3125AIDBZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

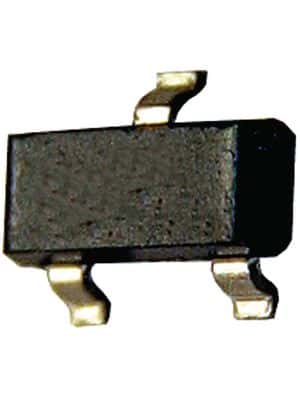

Product Images
