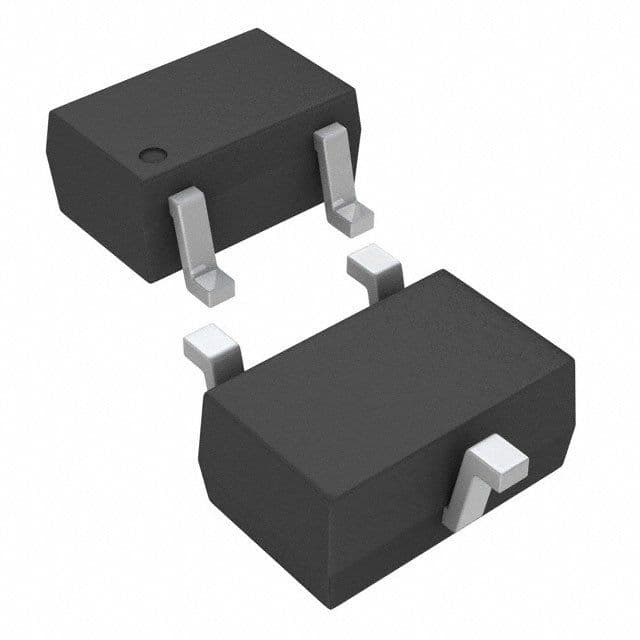

The REF3325AIDCKTG4 is a series voltage reference from Texas Instruments with a fixed output voltage of 2.5V. It operates over a wide input voltage range of 2.7V to 7.5V and is available in a SOT-23-3 package. The device is RoHS compliant and has a maximum operating temperature of 125°C. It draws a quiescent current of 5uA and a supply current of 3.9uA. The REF3325AIDCKTG4 is suitable for use in a variety of applications where a stable voltage reference is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments REF3325AIDCKTG4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments REF3325AIDCKTG4 technical specifications.
| Package/Case | SOT-23-3 |
| Lead Free | Lead Free |
| Max Input Voltage | 7.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5mA |
| Number of Channels | 1 |
| Output Current | 5mA |
| Output Voltage | 2.5V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 5uA |
| Radiation Hardening | No |
| Reference Type | Series |
| RoHS Compliant | Yes |
| Series | REF3325 |
| Supply Current | 3.9uA |
| Tolerance | 0.15% |
| RoHS | Compliant |
