Texas Instruments
REF3330AIDCKRG4
30-ppm/°C drift, 3.9µA, 3-pin SOT-23, 3-pin SC70, 8-pin UQFN series voltage reference 3-SC70 -40 to 125
PackageSOT-23-3
Current3.9uA
Quick Jump:
Technical Specifications
Texas Instruments REF3330AIDCKRG4 technical specifications.
General
Package/Case
SOT-23-3
Lead Free
Lead Free
Max Input Voltage
7.5V
Min Input Voltage
3.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5mA
Number of Channels
1
Output Current
5mA
Output Voltage
3V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
5uA
Radiation Hardening
No
Reference Type
Series
RoHS Compliant
Yes
Series
REF3330
Supply Current
3.9uA
Tolerance
0.15%
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF3330AIDCKRG4 Datasheet
Download the complete datasheet for Texas Instruments REF3330AIDCKRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

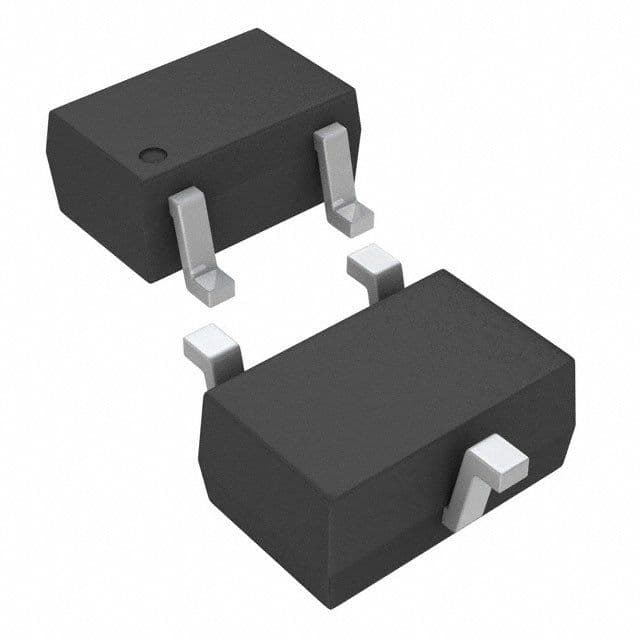

Product Images
