The REF3330AIDCKTG4 is a 3V fixed voltage reference from Texas Instruments. It operates over a temperature range of -40°C to 125°C and has a supply current of 3.9uA. The device is available in a SC-70-3 package and is RoHS compliant. It can handle a maximum input voltage of 7.5V and a minimum input voltage of 3.2V.
Current3.9uA
Quick Jump:
Technical Specifications
Texas Instruments REF3330AIDCKTG4 technical specifications.
General
| Lead Free | Lead Free |
| Max Input Voltage | 7.5V |
| Min Input Voltage | 3.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5mA |
| Min Output Voltage | 3V |
| Operating Supply Current | 8.5uA |
| Output Current | 5mA |
| Output Type | Fixed |
| Output Voltage | 3V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reference Type | Series |
| RoHS Compliant | Yes |
| Supply Current | 3.9uA |
| Tolerance | 0.15% |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments REF3330AIDCKTG4 Datasheet
Download the complete datasheet for Texas Instruments REF3330AIDCKTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

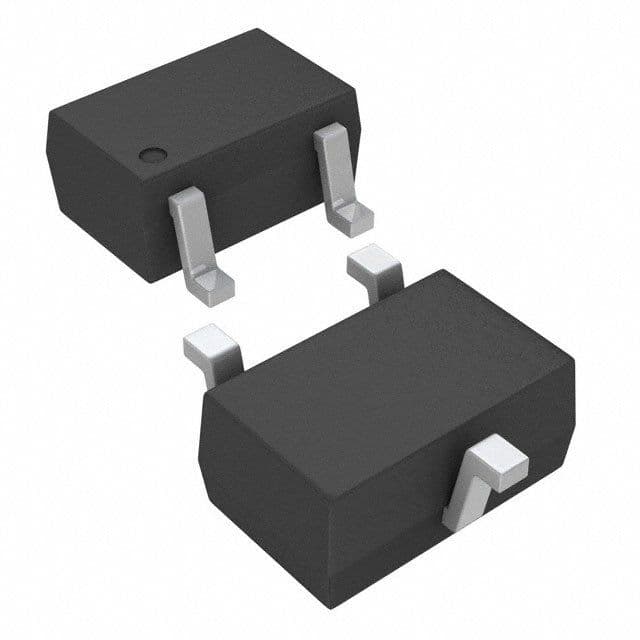

Product Images
