5V precision series voltage reference IC, offering 0.1% initial tolerance and 3-ppm/°C temperature drift. Features low 3-µVpp/V noise and 10mA maximum output current. Operates from a 5.2V to 18V input voltage range, with a quiescent current of 1mA. Packaged in an 8-VSSOP with dimensions of 3.1mm x 3.1mm x 0.95mm, suitable for operation between -40°C and 125°C. RoHS compliant and lead-free.
PackageVSSOP
Current800uA
Quick Jump:
Technical Specifications
Texas Instruments REF5050AIDGKT technical specifications.
General
Package/Case
VSSOP
Height
0.95mm
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
18V
Min Input Voltage
5.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Output Voltage
5V
Number of Channels
1
Output Current
10mA
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series, Fixed
Reference Voltage
5V
RoHS Compliant
Yes
Supply Current
800uA
Tolerance
0.1%
Weight
0.00067oz
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF5050AIDGKT Datasheet
Download the complete datasheet for Texas Instruments REF5050AIDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

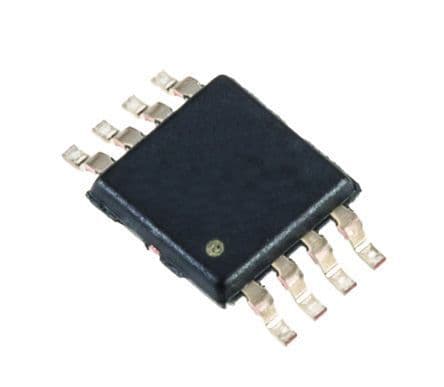

Product Images
