Texas Instruments
REG71055DDCTG4
60-mA, 5.5V, Buck/boost Charge Pump in ThinSOT-23 6-SOT-23-THIN -40 to 85
PackageSOT-23-6
Quick Jump:
Technical Specifications
Texas Instruments REG71055DDCTG4 technical specifications.
General
Package/Case
SOT-23-6
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
60mA
Max Output Voltage
5.8V
Min Output Voltage
5.2V
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of Outputs
1
Output Configuration
Positive
Output Current
60mA
Output Type
Fixed
Output Voltage
5.5V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
65uA
Radiation Hardening
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Buck-Boost, Charge Pump
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG71055DDCTG4 Datasheet
Download the complete datasheet for Texas Instruments REG71055DDCTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

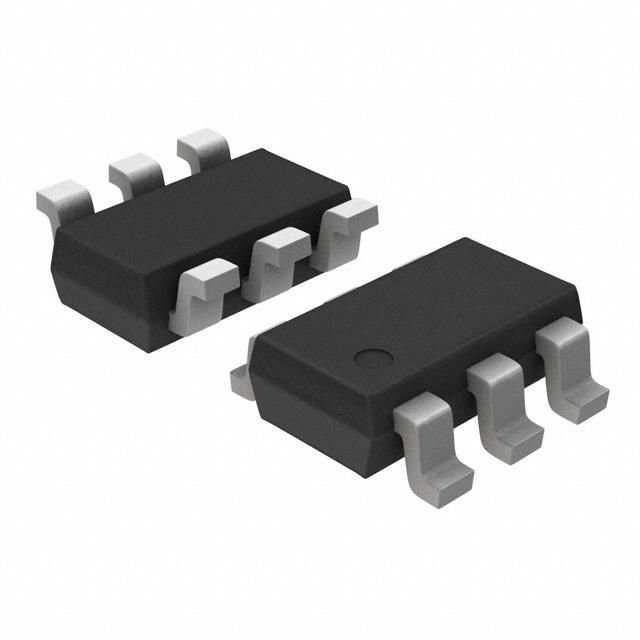

Product Images
