Texas Instruments
S5LS10116ASPGEQQ1
16b ARM Cortex-R4F MCU, 140MHz, 1MB Flash, 128KB RAM, 68 I/O, LQFP

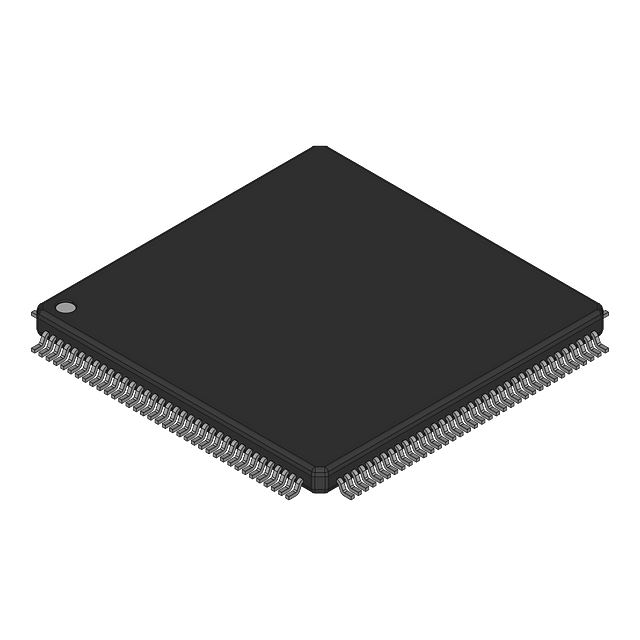

16-bit ARM Cortex-R4F Flash Microcontroller, operating at up to 140MHz. Features 1MB FLASH memory and 128KB RAM, with 24 ADC channels and 68 programmable I/Os. Supports SPI (3 channels), UART (2 channels), USART, SCI, CAN, and LIN interfaces. Operates from -40°C to 125°C with a supply voltage range of 1.35V to 3.6V. Packaged in a 144-LQFP surface mount format.
Frequency140MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments S5LS10116ASPGEQQ1 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
16b
Frequency
140MHz
Height
1.45mm
Interface
SPI, UART, USART, SCI, CAN, LIN
Lead Free
Lead Free
Length
20.2mm
Max Frequency
140MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
1MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.35V
Mount
Surface Mount
Number of ADC Channels
24
Number of I/Os
68
Number of Programmable I/O
68
Number of SPI Channels
3
Number of Timers/Counters
2
Number of UART Channels
2
Oscillator Type
External
Package Quantity
60
Packaging
Tray
Peripherals
POR, DMA
Radiation Hardening
No
RAM Size
128KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R
Width
20.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments S5LS10116ASPGEQQ1 Datasheet
Download the complete datasheet for Texas Instruments S5LS10116ASPGEQQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
