160MHz 32-bit RISC Flash Microcontroller featuring an ARM Cortex-R core. This surface mount device offers 2MB of FLASH memory, 160KB of RAM, and operates with a supply voltage range of 1.35V to 1.65V. Integrated peripherals include POR and DMA, with extensive interface support for CAN, UART, LIN, SPI, USART, SCI, and EBI/EMI. The microcontroller boasts 24 ADC channels and 115 I/Os, suitable for operation across a wide temperature range of -40°C to 125°C.
Frequency160MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments S5LS20216ASGWTMEP technical specifications.
General
Package/Case
BGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
160MHz
Interface
CAN, UART, LIN, SPI, USART, SCI, EBI/EMI
Lead Free
Contains Lead
Max Frequency
160MHz
Max Operating Temperature
125°C
Max Supply Voltage
1.65V
Memory Size
2MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.35V
Mount
Surface Mount
Number of ADC Channels
24
Number of I/Os
115
Number of Timers/Counters
1
Number of UART Channels
2
Operating Supply Voltage
1.5V
Oscillator Type
External
Package Quantity
90
Packaging
Rail/Tube
Peripherals
POR, DMA
RAM Size
160KB
RoHS Compliant
No
Series
Hercules™ TMS570 ARM® Cortex®-R
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments S5LS20216ASGWTMEP Datasheet
Download the complete datasheet for Texas Instruments S5LS20216ASGWTMEP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

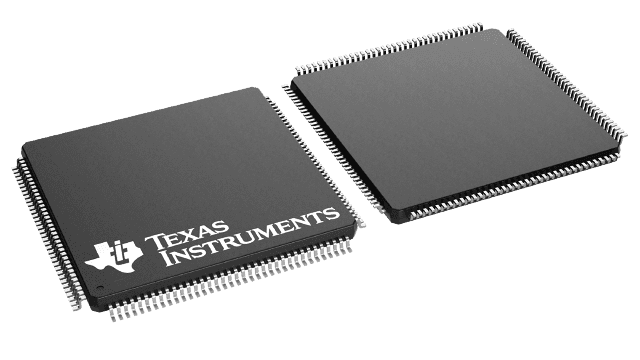

Product Images
