PackageCDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Texas Instruments SN54150J technical specifications.
General
| Package/Case | CDIP |
| High Level Output Current | -800uA |
| Independent Circuits | 1 |
| Lead Free | Contains Lead |
| Logic Function | Multiplexer, Mux |
| Low Level Output Current | 16mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Inputs | 16 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Type | Single |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments SN54150J Datasheet
Download the complete datasheet for Texas Instruments SN54150J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

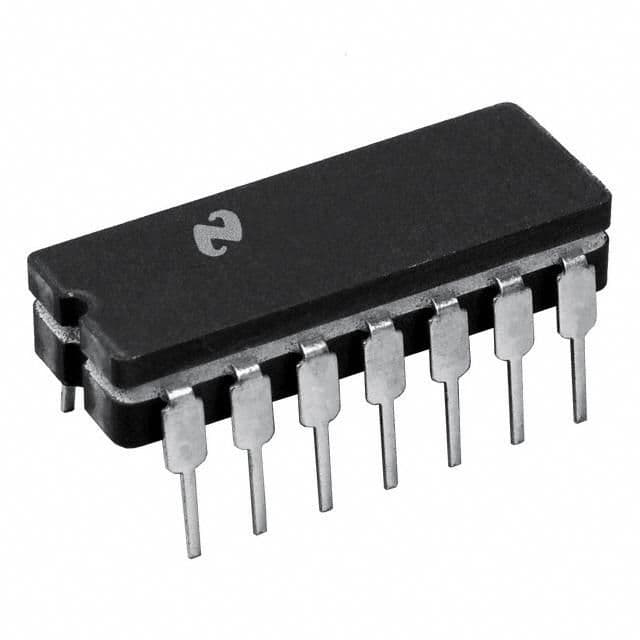

Product Images
