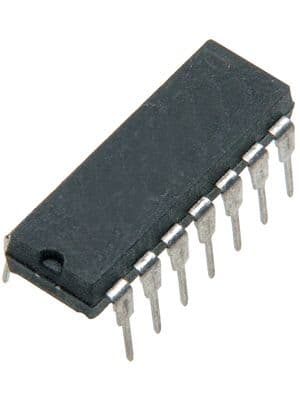

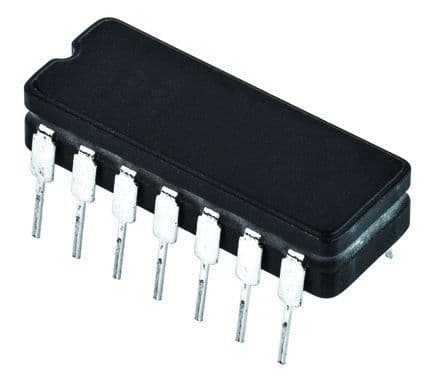

Hex Schmitt-trigger Inverters, a CMOS logic IC featuring six independent inverter gates with Schmitt-trigger inputs. This component operates with a supply voltage range of 2V to 6V, supporting a typical 5V operation. It offers a high level output current of -5.2mA and a low level output current of 5.2mA, with a propagation delay of 190ns. Encased in a 14-pin CDIP package for through-hole mounting, it functions across an extended temperature range from -55°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments SN54HC14J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | CDIP |
| Height | 3.56mm |
| High Level Output Current | -5.2mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Contains Lead |
| Length | 19.94mm |
| Logic Function | Inverter, Schmitt Trigger |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 190ns |
| Quiescent Current | 2uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Schmitt Trigger Input | Yes |
| Technology | CMOS |
| Turn-On Delay Time | 190ns |
| Width | 7.62mm |
| RoHS | Not CompliantNo |
