SN54LS11J
Military 3-ch, 3-input, 4.5-V to 5.5-V bipolar AND gates 14-CDIP -55 to 125
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN54LS11J technical specifications.
General
| Package/Case | CDIP |
| High Level Output Current | -400uA |
| Lead Free | Contains Lead |
| Logic Function | AND GATE |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Packaging | Rail/Tube |
| Propagation Delay | 20ns |
| RoHS Compliant | No |
| Technology | BIPOLAR |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments SN54LS11J Datasheet
Download the complete datasheet for Texas Instruments SN54LS11J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

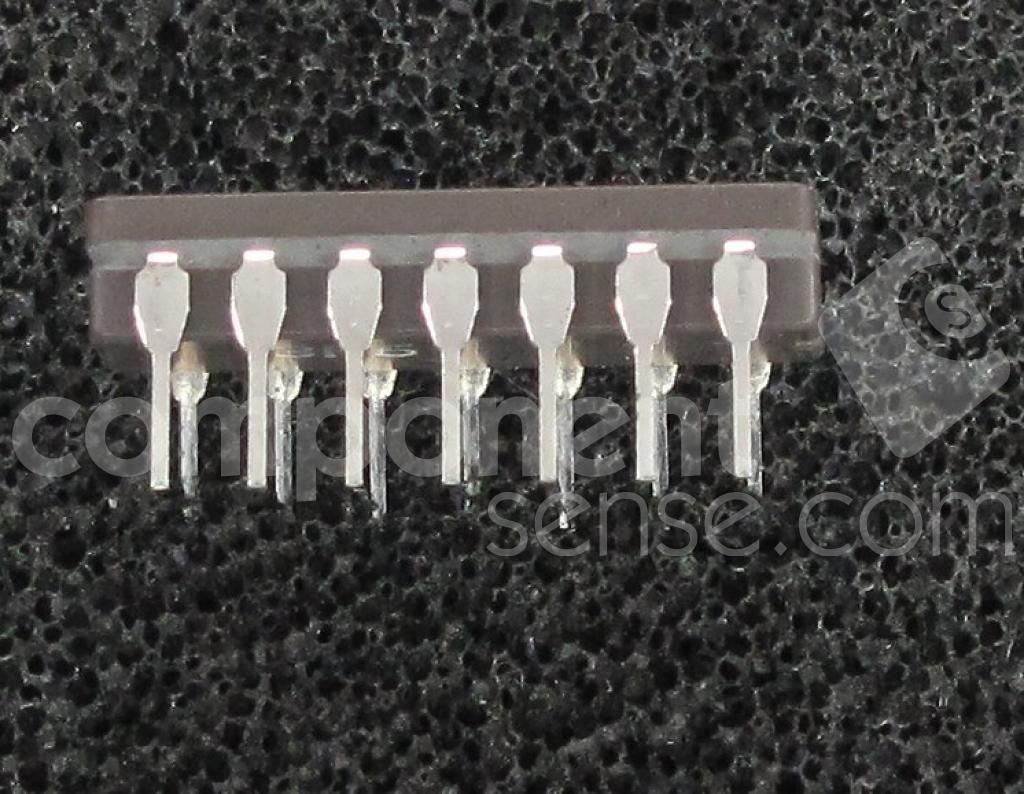

Product Images
