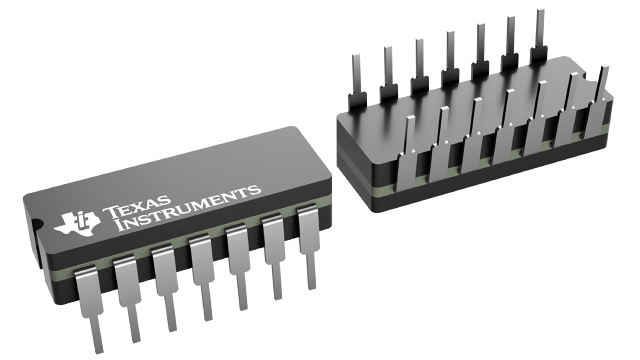

Quadruple bus buffer gates with 3-state outputs, featuring 4 non-inverting buffer elements. This integrated circuit operates with a 5V supply voltage, ranging from 4.5V to 5.5V, and supports a wide temperature range of -55°C to 125°C. The component offers a low-level output current of 12mA and a high-level output current of -1mA, with TTL output type. Designed for through-hole mounting in a CDIP package, it exhibits a propagation delay and turn-on delay time of 25ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments SN54LS125AJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | CDIP |
| High Level Output Current | -1mA |
| Lead Free | Contains Lead |
| Logic Function | Buffer |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 25ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Technology | BIPOLAR |
| Turn-On Delay Time | 25ns |
| RoHS | Not CompliantNo |
