PackageCDIP
Current71mA
Power1.05W
Quick Jump:
Technical Specifications
Texas Instruments SN55452BJG technical specifications.
General
| Package/Case | CDIP |
| Lead Free | Contains Lead |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 400mA |
| Output Voltage | 30V |
| Packaging | Rail/Tube |
| Power Dissipation | 1.05W |
| Propagation Delay | 35ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Supply Current | 71mA |
| Termination | Through Hole |
| Turn-Off Delay Time | 12ns |
| Turn-On Delay Time | 8ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments SN55452BJG Datasheet
Download the complete datasheet for Texas Instruments SN55452BJG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

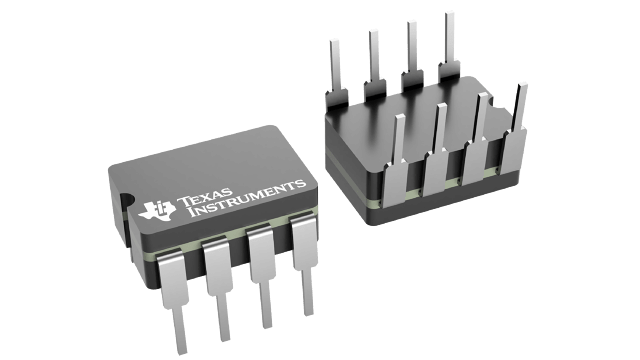

Product Images
