Half-duplex differential bus transceiver supporting up to 10Mbps data rates. Features a 5V operating supply voltage with a range of 4.75V to 5.25V and a maximum operating current of 70mA. Packaged in a through-hole PDIP with dimensions of 9.81mm length, 6.35mm width, and 4.57mm height. Operates across a temperature range of -40°C to 105°C and is RoHS compliant.
PackagePDIP
Current70mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN65176BP technical specifications.
General
Package/Case
PDIP
Data Rate
10Mbps
Height
4.57mm
Lead Free
Lead Free
Length
9.81mm
Logic Function
Transceiver
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
70mA
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
70mA
Weight
0.015535oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65176BP Datasheet
Download the complete datasheet for Texas Instruments SN65176BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

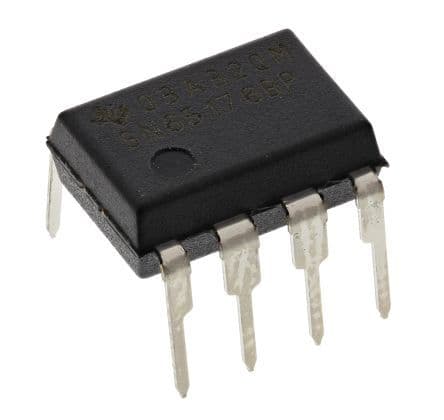

Product Images
