Single-channel unidirectional transient voltage suppressor designed for USB port protection. Features a low capacitance of 35pF and a clamping voltage of 7V, with a maximum breakdown voltage of 8V. Offers a 1A current rating and 60W peak pulse power dissipation, operating within a -40°C to 85°C temperature range. Packaged in a compact SOT-23 surface-mount case, this lead-free component provides 1uA leakage current and a 6V working voltage.
PackageSOT-23
Capacitance35pF
Voltage Rating6V
Current Rating1A
Quick Jump:
Technical Specifications
Texas Instruments SN65220DBVT technical specifications.
General
| Capacitance | 35pF |
| Package/Case | SOT-23 |
| Clamping Voltage | 7V |
| Current Rating | 1A |
| Depth | 1.6mm |
| Height | 1.15mm |
| Interface | USB |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 2.9mm |
| Max Breakdown Voltage | 8V |
| Min Breakdown Voltage | 7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 60W |
| Max Surge Current | 3A |
| Number of Channels | 2 |
| Number of Circuits | 1 |
| Operating Supply Voltage | 6V |
| Packaging | Tape and Reel |
| Polarity | Unidirectional |
| Power Dissipation | 385mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Weight | 0.000473oz |
| Width | 1.6mm |
| Working Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65220DBVT Datasheet
Download the complete datasheet for Texas Instruments SN65220DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

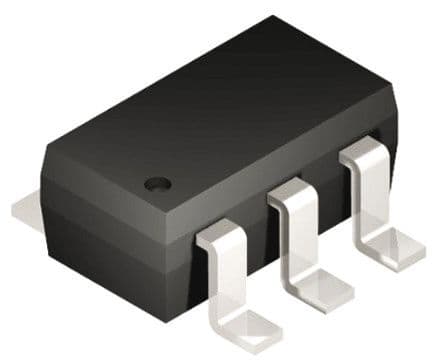

Product Images
