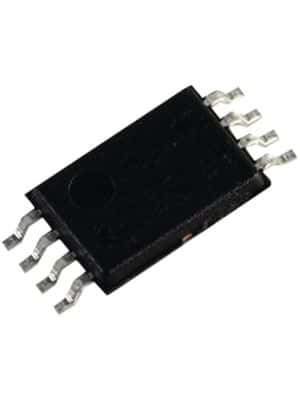

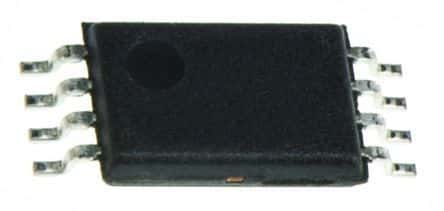

Dual USB port transient suppressor IC, designed for robust protection. Features a 7V clamping voltage and 1A current rating, with a 3A max surge current capability. Operates within a 3V to 5V supply voltage range, and offers a 3.3V working voltage. Housed in a compact 8-TSSOP package with SMD/SMT termination, this unidirectional suppressor is RoHS compliant and suitable for operation from -40°C to 85°C.
PackageTSSOP
Voltage Rating3.3V
Current Rating1A
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments SN65240PW technical specifications.
General
| Package/Case | TSSOP |
| Clamping Voltage | 7V |
| Current Rating | 1A |
| Height | 1.15mm |
| Interface | USB |
| Lead Free | Lead Free |
| Length | 3mm |
| Min Breakdown Voltage | 7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 60W |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 3V |
| Max Surge Current | 3A |
| Number of Channels | 4 |
| Number of Circuits | 1 |
| Packaging | Rail/Tube |
| Polarity | Unidirectional |
| Power Dissipation | 520mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Weight | 0.001376oz |
| Width | 4.4mm |
| Working Voltage | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN65240PW Datasheet
Download the complete datasheet for Texas Instruments SN65240PW to view detailed technical specifications.
