PackageSOP
Current9mA
Quick Jump:
Technical Specifications
Texas Instruments SN65C1168NSR technical specifications.
General
Package/Case
SOP
Data Rate
10Mbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
9mA
Operating Supply Voltage
5V
Packaging
Tape and Reel
Receiver Hysteresis
60mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
9mA
Weight
0.007079oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65C1168NSR Datasheet
Download the complete datasheet for Texas Instruments SN65C1168NSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

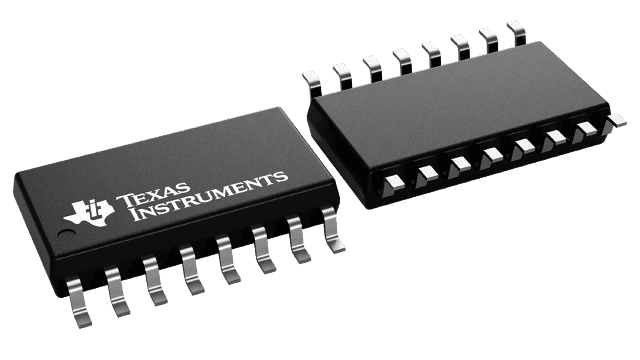

Product Images
