Texas Instruments
SN65C23243DGGR
3- to 5.5-V multichannel 250kbps RS-232 line driver/receiver with +/-15-kV ESD protection 48-TSSOP -40 to 85
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN65C23243DGGR technical specifications.
General
Package/Case
TSSOP
Data Rate
250Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
6
Number of Receivers
10
Number of Transceivers
1
Number of Transmitters
6
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
2mA
Weight
0.007873oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN65C23243DGGR Datasheet
Download the complete datasheet for Texas Instruments SN65C23243DGGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

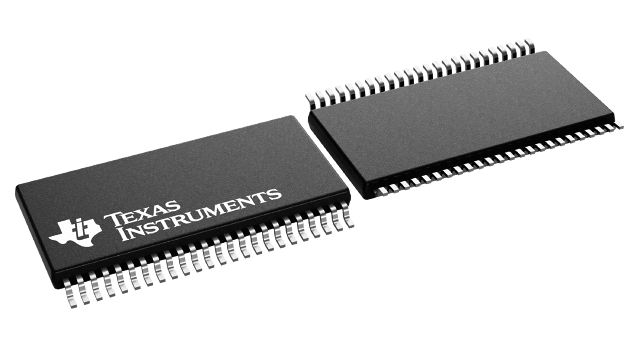

Product Images
